50mm Transparent DMX RGB Full Color 3D Pixel Ball Light String
Solid Acrylic Ball | 360° Illumination | DMX512 RGB
Product Description:
DMX RGB 360° Double-Sided Emitting Decorative Lighting Solution
The 50mm Transparent 3D Pixel Ball Light String is a professional-grade DMX-controlled RGB lighting system designed for creative architectural, event, stage, and media facade applications. Featuring a solid acrylic 3D sphere with four high-brightness SMD5050 LEDs, each ball delivers vivid 360° illumination and excellent visibility from multiple viewing angles.
With customizable spacing, cable length, and installation configurations, this versatile pixel lighting solution can be used for LED curtains, LED cubes, suspended light sculptures, media art projects, and architectural decorative lighting.
Technical Parameters:
| Product Model |
LCL-3DB50M/T-D0401 |
| Diameter |
50mm |
| Material |
Transparent / Milky White Acrylic |
| LED Source |
SMD 5050 RGB LEDs |
| LED Quantity |
4 LEDs |
| Pixels |
1 Pixel |
| Input Voltage |
DC15V |
| Power |
0.9W per ball |
| Control |
DMX512 |
| Address |
Manually Set |
| Warranty |
2-Year |
| Lifespan |
50,000 Hours |
| IP Rate |
IP65 |
Key Features:
• Transparent 3D Acrylic Ball
- 50mm diameter solid acrylic sphere
- Transparent finish for premium visual appearance
- Optional milky white diffuser version
- Excellent light transmission
- Strong impact resistance

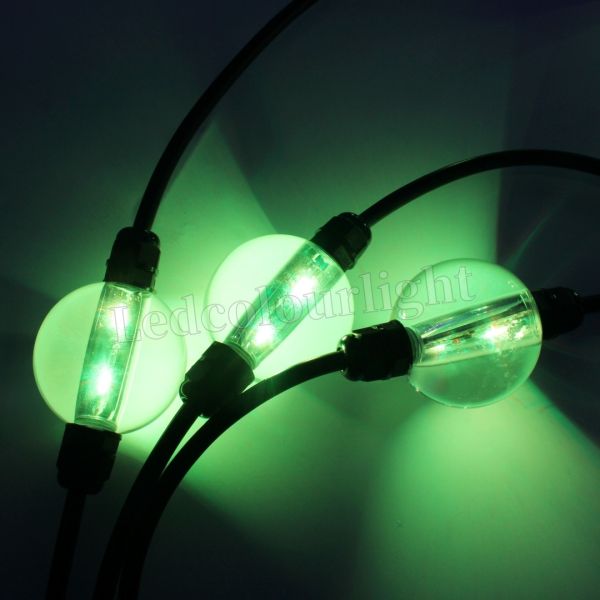

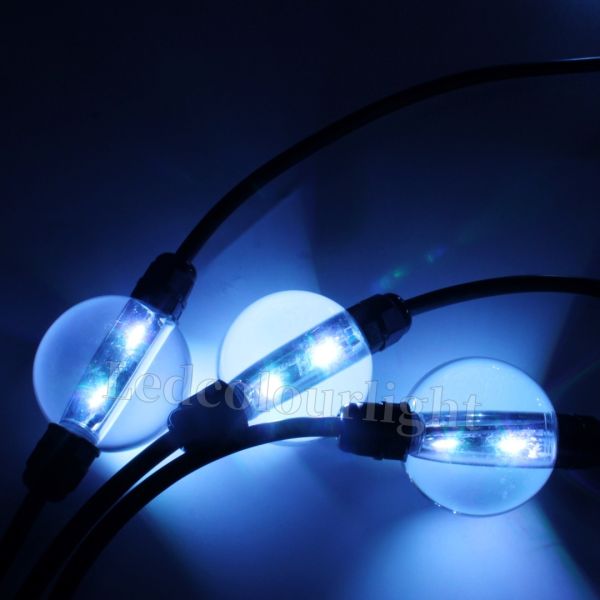

• 360° Double-Sided Illumination
- 4 SMD5050 RGB LEDs inside each sphere
- 2 LEDs on each side
- Uniform light output from all viewing angles
- Enhanced brightness compared to single-sided pixel nodes
• DMX RGB Pixel Control
- Standard DMX RGB protocol
- Individual pixel control capability
- Smooth dimming and color transitions
- Compatible with professional lighting controllers
- Supports dynamic animations and media effects
• Flexible Customization
- Available center spacing options:100mm (10cm) / 200mm (20cm) / 500mm (50cm)
- Custom spacing available
- Custom production available for: String length / LED quantity / Cable color / Connector configuration / Installation method
• Reliable Outdoor Performance
- IP65 waterproof rating
- Waterproof screw-lock cable glands
- Suitable for indoor and outdoor applications
- UV-resistant acrylic housing
- Stable operation in various weather conditions
• Multiple Color Options
- Waterproof screw connectors: Black / White
- Cable colors: Black / White
- Ball housing: Transparent / Milky White
Transparent VS Milky White Housing, Full RGB Lighting Effects.

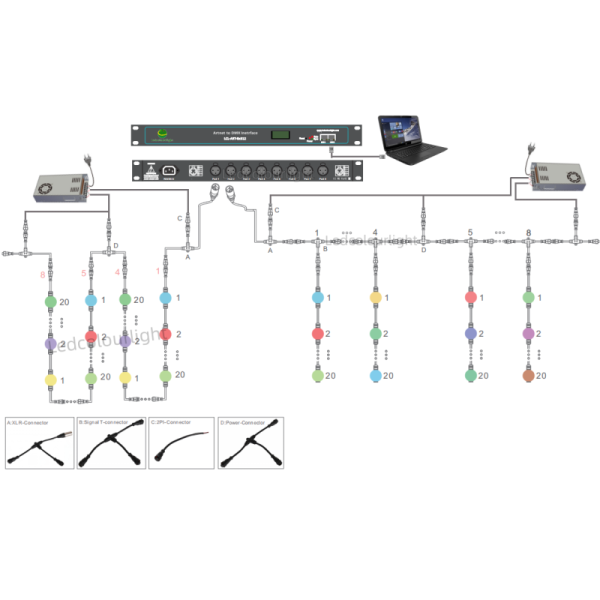

Connection Diagram:
The pixel balls use DMX RGB protocol and can be integrated into professional lighting systems.
➫ Compatible with: DMX Controllers / Art-Net Nodes / Lighting Consoles / Computer-Based Lighting Software / Media Servers
➫ Typical system configuration: Power Supply (DC15V) → DMX Controller → 3D Pixel Ball Light Strings
➫ Cascading Capability:
- Multiple strings can be connected together
- Suitable for large-scale installations
- Simplified wiring architecture
- Easy maintenance and expansion
Customization: The balls are pre-wired in a single-string design, allowing seamless installation and consistent spacing. Center distance and ball count per string are customizable to suit project requirements—standard configurations typically feature 20 balls per string with 10-20cm center spacing.

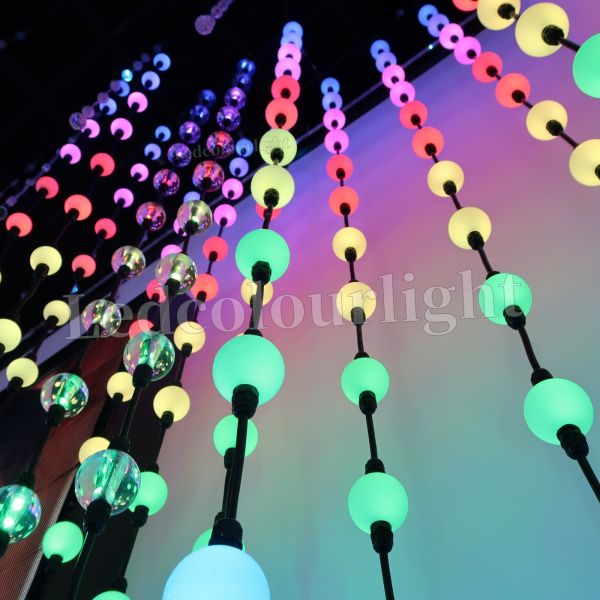

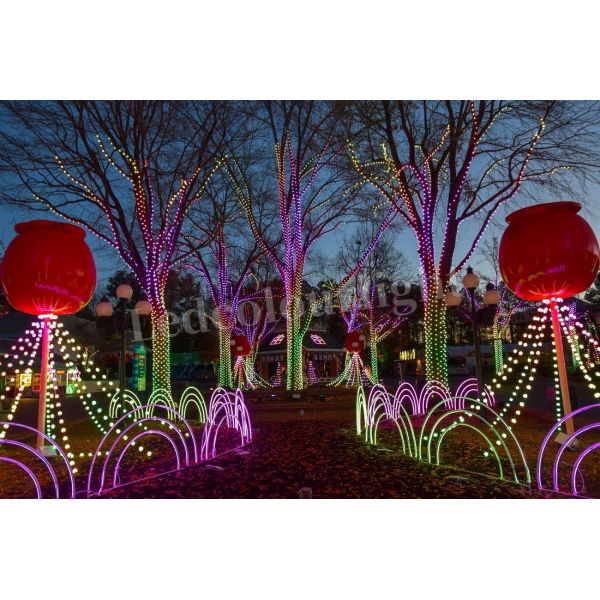

Application
The pixel-programmable nature of these lights enables limitless creativity. Commonly used in:
- Outdoor Christmas and holiday decorations.
- Art museums and gallery installations.
- Shopping mall atriums and retail displays.
- Nightclubs and stage backdrops.
- Concepts and artistic projects, or festive decorations.
Certifications:
Fully CE & RoHS certified—safe, eco‑friendly, and ready for global markets.
FAQ:
-
Q1: Are you a factory or a trading company?
We are a factory as a manufacturer.
Q2: What does your company produce mainly?
Ledcolourlight mainly specializes in DMX lighting products and also provides a full DMX lighting solution for lighting projects.
Q3: What certifications does it have?
CE and RoHS certified for safety and environmental compliance.
Q4: What is the minimum order quantity?
Minimum 100 pieces, samples are available.
Q5: What are the payment and delivery terms?
PayPal, T/T, Credit Card, Western Union, L/C - 8-12 working days delivery.
Q6: Warranty?
All products we sell are of good quality and have been tested before shipment. We offer a 2-year warranty.
Q7: OEM and ODM Available?
Yes. This is the advantage of our factory: we focus on delivering an integrated customization service.
Q8: How about I have never bought or used any product like this?
We will guide you step by step, list any potential costs, and provide an introductory manual or remote guidance.
