Mini Bean 3D LED Pixel Light Strings For Outdoor Holiday Festive Lighting
360-degree Lighting | Customized Spacing | Outdoor Decoration
Product Highlights:
• Ultra-compact design: Φ11 mm × 28 mm size fits into narrow channels, letters, or hidden profiles.
• 360° Dual-Side Illumination: 1 LED per side (2 total SMD3535) eliminates shadows and dark zones.
• Transparent or Black Cable: Invisible integration (transparent) or clean aesthetic (black) for design flexibility.
• Low Voltage DC12V: Safer for outdoor use and compatible with common SPI controllers.
• SPI RGB Protocol: Supports individual addressable control for chasing, breathing, and pixel mapping effects.
• Fully Customizable Layout: Center spacing: 10cm / 20cm / 50cm or custom; string length made-to-order.
• IP65 Weather Resistance: Protected against jets of water and dust – reliable for outdoor installations.
• Durable PC Shell: Clear polycarbonate resists impact and UV yellowing.
Product Parameters:
| Product Name |
Mini Bean Pixel RGB Light String |
| Size |
Φ11 mm × 28 mm |
| LED Quantity |
2 * SMD3535 |
| Power Consumption |
0.6W Per Light |
| Control Protocol |
SPI |
| Light Color |
RGB (Red, Green, Blue) |
| Voltage |
DC12V |
| Applications |
Holiday, Event, Show, Exhibition |
| Number Of LEDs |
20/30/50 LEDs per string (Custom) |
| Spacing |
10cm/20cm/30cm (Custom) |
| IP Rating |
IP65 |
| Lifespan |
50,000 hours |

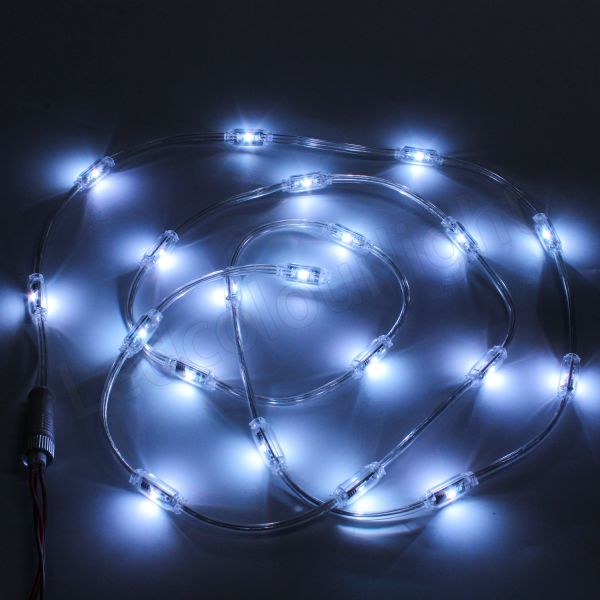

Product Photos:

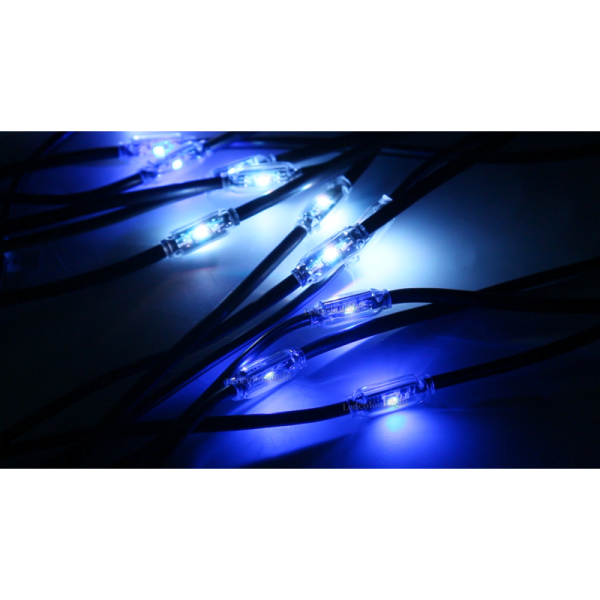

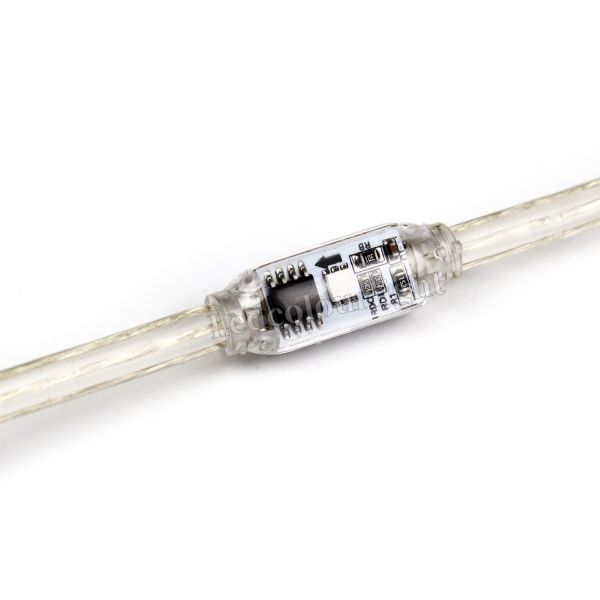

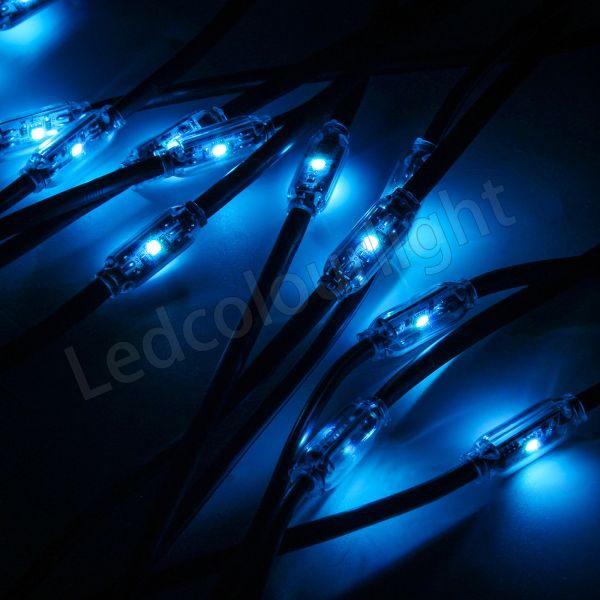

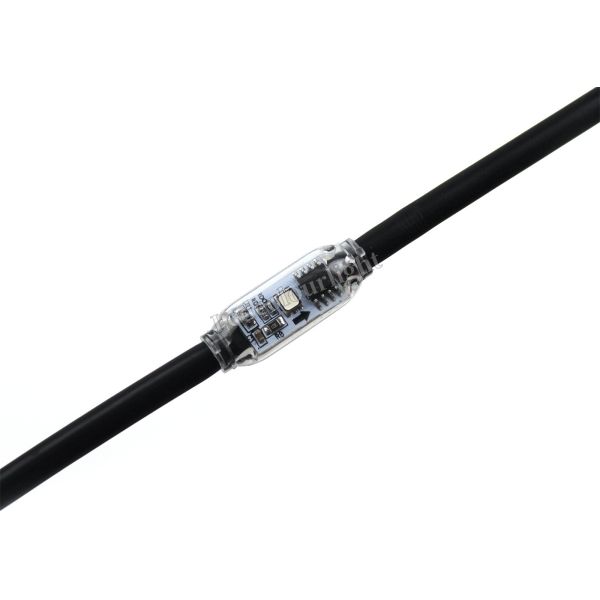

Available with transparent or black cable.
Customizable center-to-center distance (standard 10-20cm)
Control & Wiring:
Control Protocols:
➢ SPI (TTL): Chasing, breathing, and gradient effects (Compatible with K-1000, SP107E, Arduino, WLED).
Wiring Diagram:
➢ Option A (Input Only): Signal travels one-way. Requires a T-type cable for hanging.
➢ Option B (Input + Output): Built-in pass-through allows direct male-to-female serial connection between nodes without a T-type connector (longer daisy chains).
Electrical Specs per Node:
➢ Voltage: DC12V
➢ Power: 0.6W
Packaging & Shipping:
Packaging: Anti-static bag + export carton.
Carton Size: Custom-based on string length (typically 51*47*35 cm for 21 rolls of 20 nodes)
Shipping Port: Shenzhen.

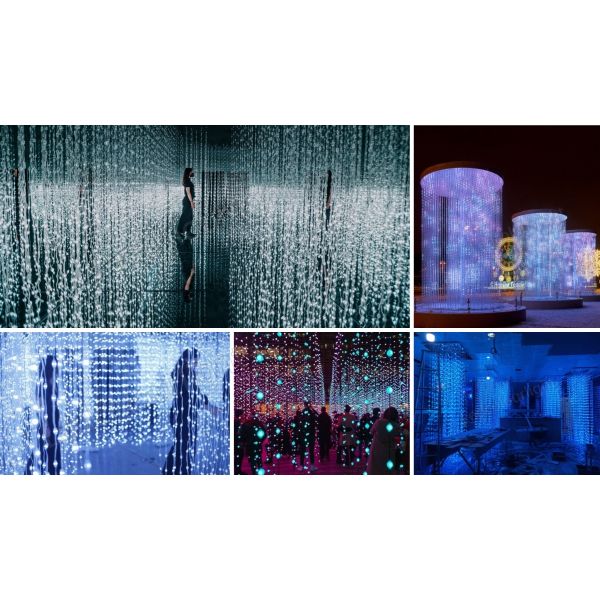

Applications:
➣ Architectural Outlines: Hotels, shopping malls, and office building facades.
➣ Entertainment Venues: Concert stages, nightclub interiors, and theme parks.
➣ Holiday Decorations: Christmas trees, city streets, and winter festivals.
➣ Landscape Lighting: Bridges, garden paths, and park pavilions.
➣ Commercial Signs: Logo walls and dynamic 3D signage.
Certifications:
Our LED pixel string lights deliver reliable, vibrant, and customizable performance – all backed by CE & ROHS certification.
FAQ:
Q1: Can I customize the spacing between lights and the total string length?
A1: Yes! We offer standard 10cm and 20cm spacing, as well as fully custom spacing. Standard string lengths include 1m, 5m, and 10m; custom lengths are available upon request.
Q2: What is the minimum center spacing possible?
A2: 5cm (50mm). This is ideal for high-resolution pixel mapping or very dense decorative patterns.
Q3: Is the string suitable for outdoor use?
A3: Yes, the lights are fully potted with an IP65 waterproof rating, making them suitable for outdoor use in rain and humid environments.
Q4: Do you offer OEM and custom project services?
A4: Yes. We provide customized production, including module spacing, cable lengths, connectors, packaging, and private branding.
Q5: What are the delivery time and payment terms for ordering these RGB String Lights?
A5: The delivery time is typically 12 to 15 working days. Payment terms accepted include T/T and PayPal.
