LED Pixel String Lights (Indoor & Outdoor)
Our LED pixel string lights are designed for both indoor and outdoor use, offering outstanding flexibility and performance for a wide range of applications - from architectural lighting and festive decorations to dynamic video walls and 3D setups.
Product Description:
Key Features
→ Indoor & Outdoor Ready - IP65 waterproof rating ensures reliable operation in wet or dusty environments.

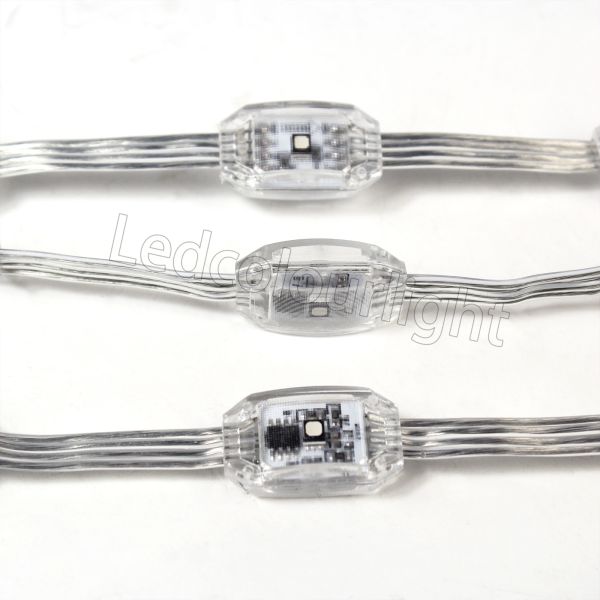

→ Pixel Control - 2 LEDs per pixel (2 LEDs, 1 pixel node) for smooth, high-resolution effects.
→ Voltage - DC12V for stable power delivery over longer runs.
→ Dual Protocol Support - DMX or SPI protocol is optional.
→ Customizable Layout - Center-to-center spacing and string length are fully customizable to fit your project perfectly.

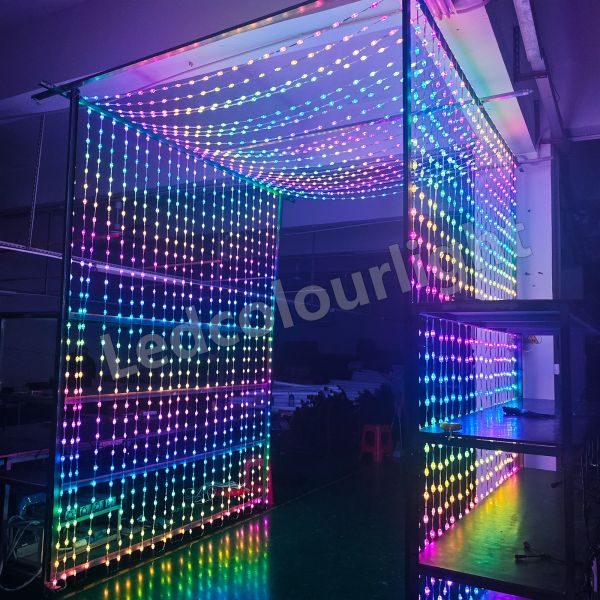

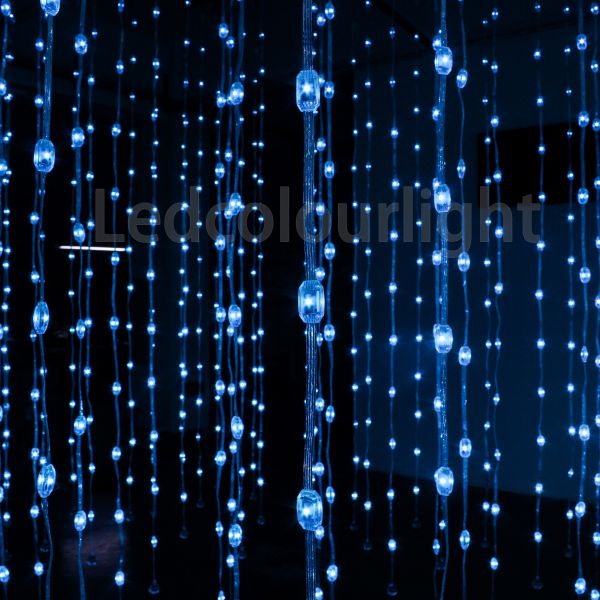

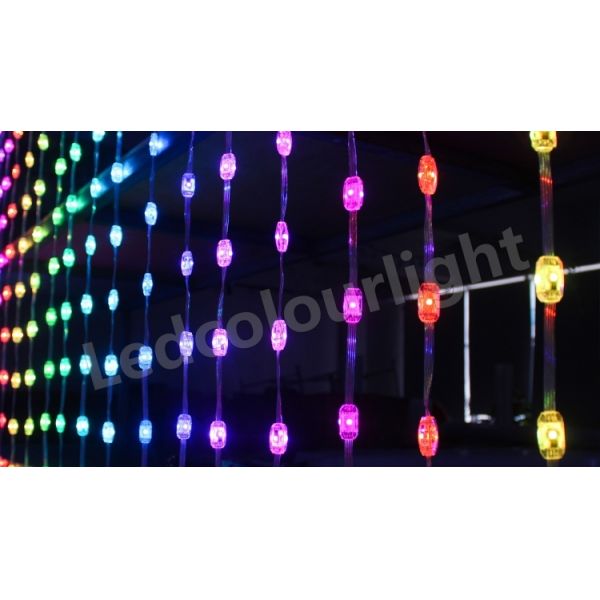

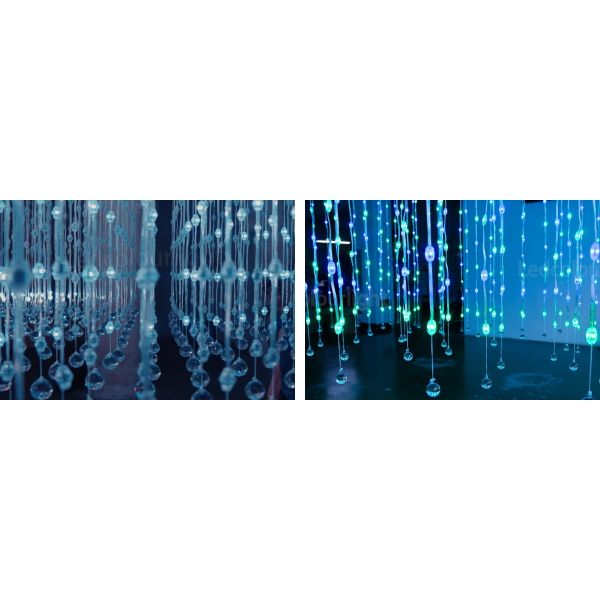

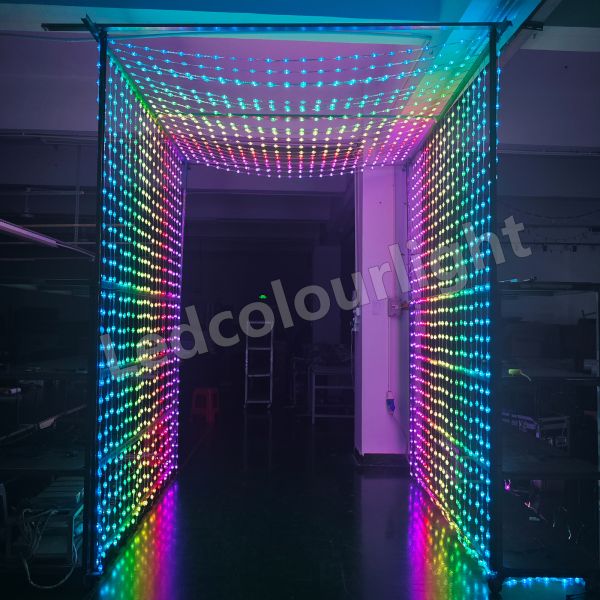

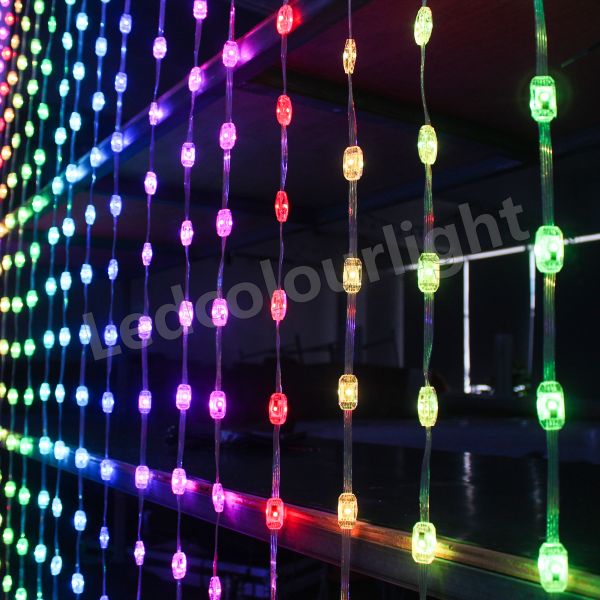

→ Curtain & 3D effects - Can be arranged as curtain lights or installed in 3D pixel mapping.
| Product Name |
Programming RGB Pixel Light String |
| Size |
29*15*10mm |
| LED Quantity |
2 * SMD3535 |
| Power Consumption |
0.6W Per Light |
| Control Protocol |
DMX512, SPI |
| Light Color |
RGB (Red, Green, Blue) |
| Voltage |
DC12V |
| Applications |
Holiday, Event, Show, Exhibition |
| Number Of LEDs |
20/50/100 LEDs per string (Custom) |
| Spacing |
10cm/20cm/30cm (Custom) |
| IP Rating |
IP65 |
| Lifespan |
50,000 hours |
Cable Color Options - Choose transparent or black wires to match different installation needs.

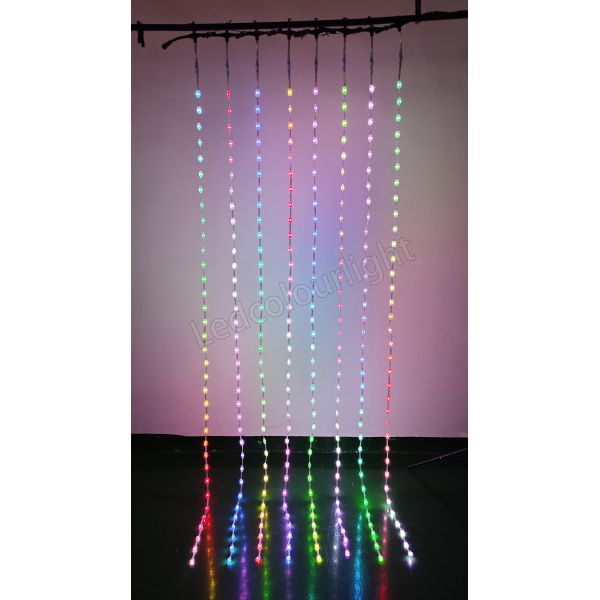

Hanging Aid - Optional counterweight / Pendant accessory keeps strings straight and vertical, improving stability and visual alignment.
Example string: 20 LEDs, 15cm spacing, 15cm input cable → total length 3 meters.
Example string: 100 LEDs, 10cm spacing, 10cm input & output cable → total length 10.1 meters.
Example string: 35 LEDs, 7cm spacing, 10cm input cable → total length 2.48 meters.
Connection Diagram:
Customization Options
We support full OEM/ODM customization. Typical configurations include:
✅Standard center distance: 10cm - 20cm
✅Standard string length: 20 LEDs per string
✅Example string design: 20 LEDs, 15cm spacing → total length 3 meters.
✅Cable exit: Both ends wired out for easy daisy-chaining or installation. / Or one end with an input cable for vertical hanging installation.
Applications:
Our LED pixel string lights bring dynamic lighting effects to a wide variety of settings, including:
→ Art galleries
→ Weddings
→ Shopping malls
→ Stage background decoration
→ Club & bar decoration
→ Exhibition halls & pavilions
→ Light festivals
→ Christmas & other holiday decorations.
Certifications:
Our LED pixel string lights deliver reliable, vibrant, and customizable performance – all backed by CE & ROHS certification.
FAQ:
Q1: Can I customize the spacing between lights and the total string length?
A1: Yes! We offer standard 10cm and 20cm spacing, as well as fully custom spacing. Standard string lengths include 1m, 5m, and 10m; custom lengths are available upon request.
Q2: What control protocols are supported?
A2: The lights have DMX512 (for large-scale, synchronized installations) and SPI (for fast-response, dynamic effects) as the two main control protocols.
Q3: Is the string suitable for outdoor use?
A3: Yes, the lights are fully potted with an IP66 waterproof rating, making them suitable for outdoor use in rain and humid environments.
Q4: What is the minimum order quantity and packaging details for the RGB String Lights?
A4: The minimum order quantity is 500 units. Packaging dimensions are 57*40*38 cm, with 2600 nodes per box.
Q5: What are the delivery time and payment terms for ordering these RGB String Lights?
A5: The delivery time is typically 12 to 15 working days. Payment terms accepted include T/T and PayPal.
